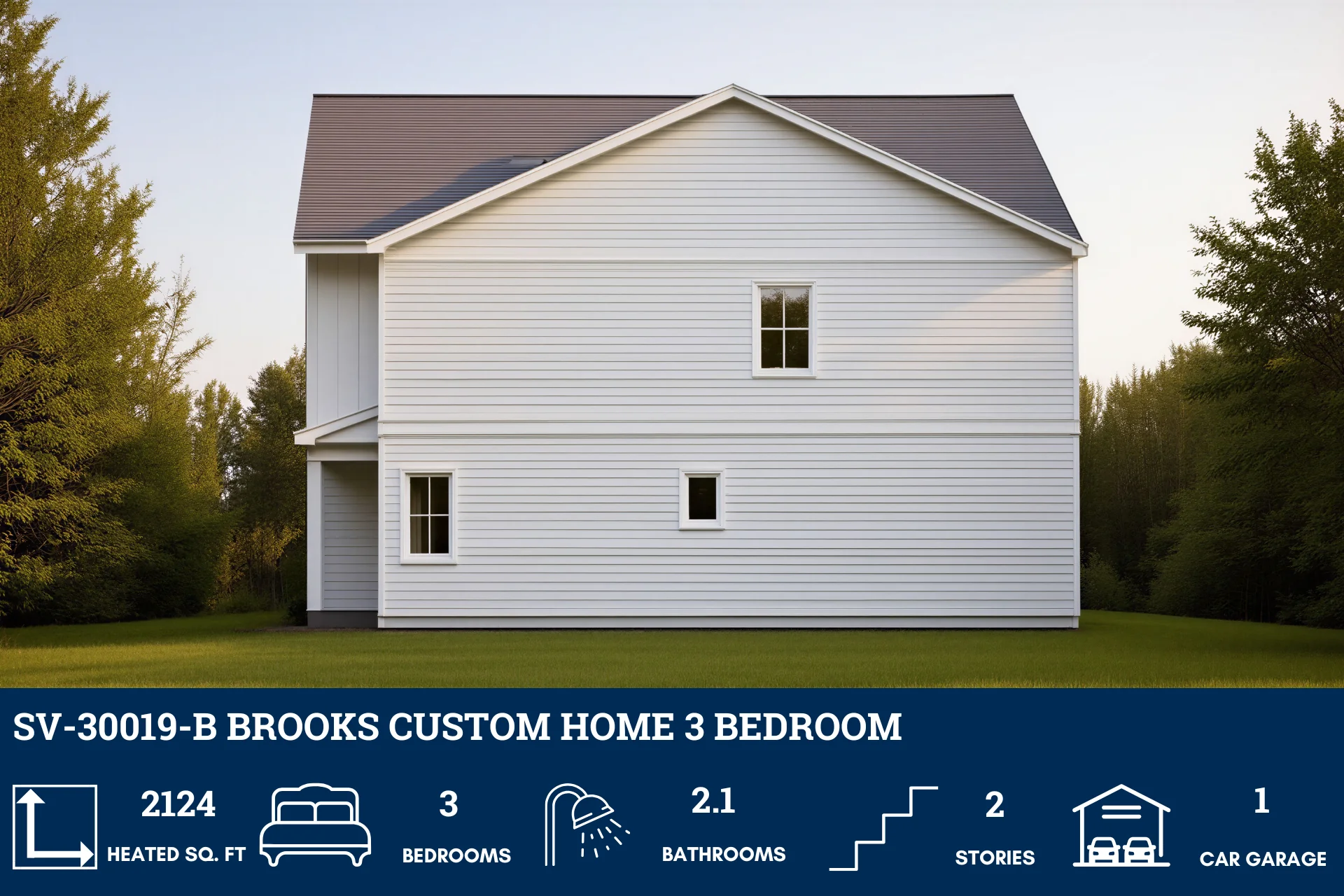

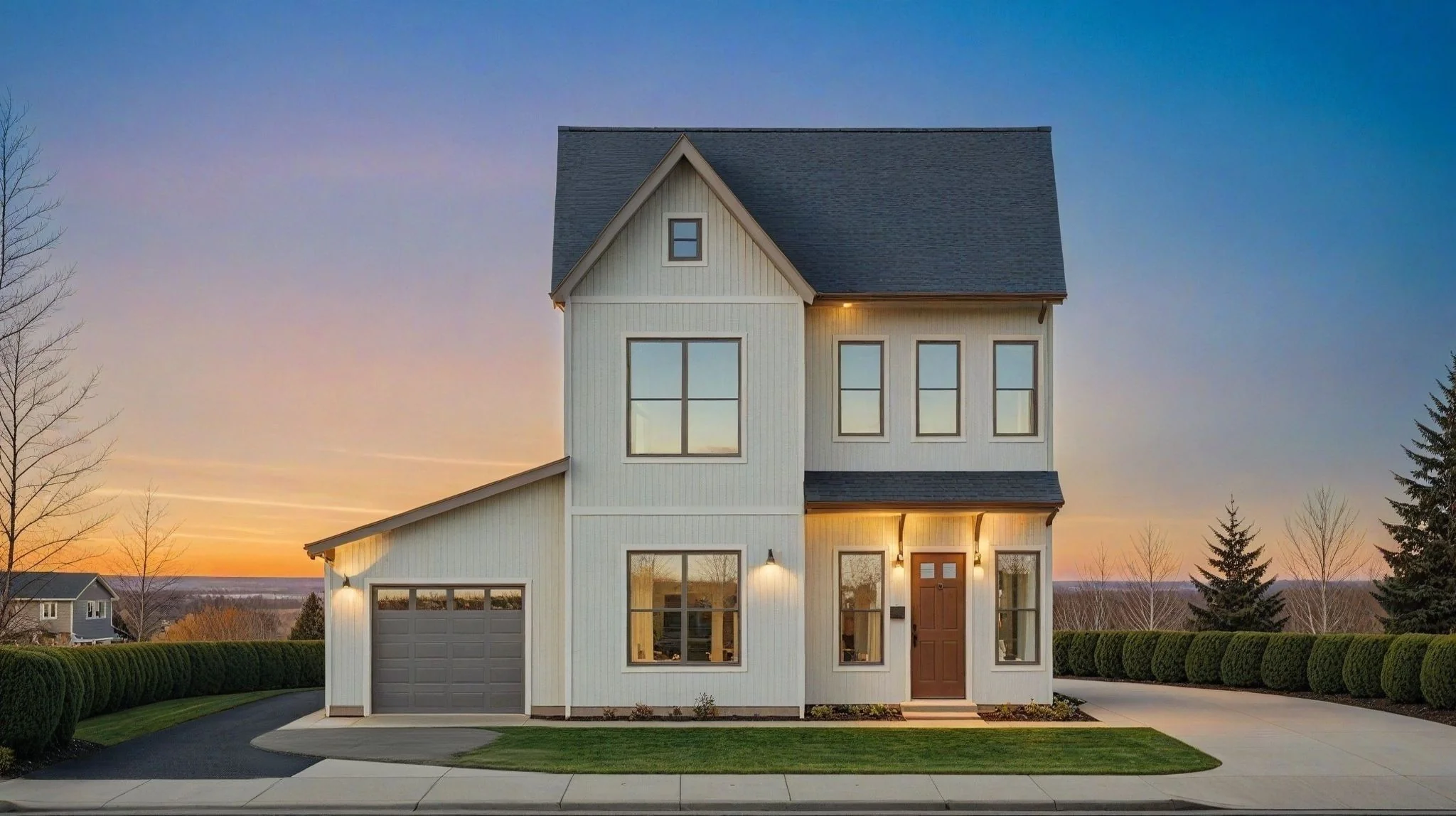

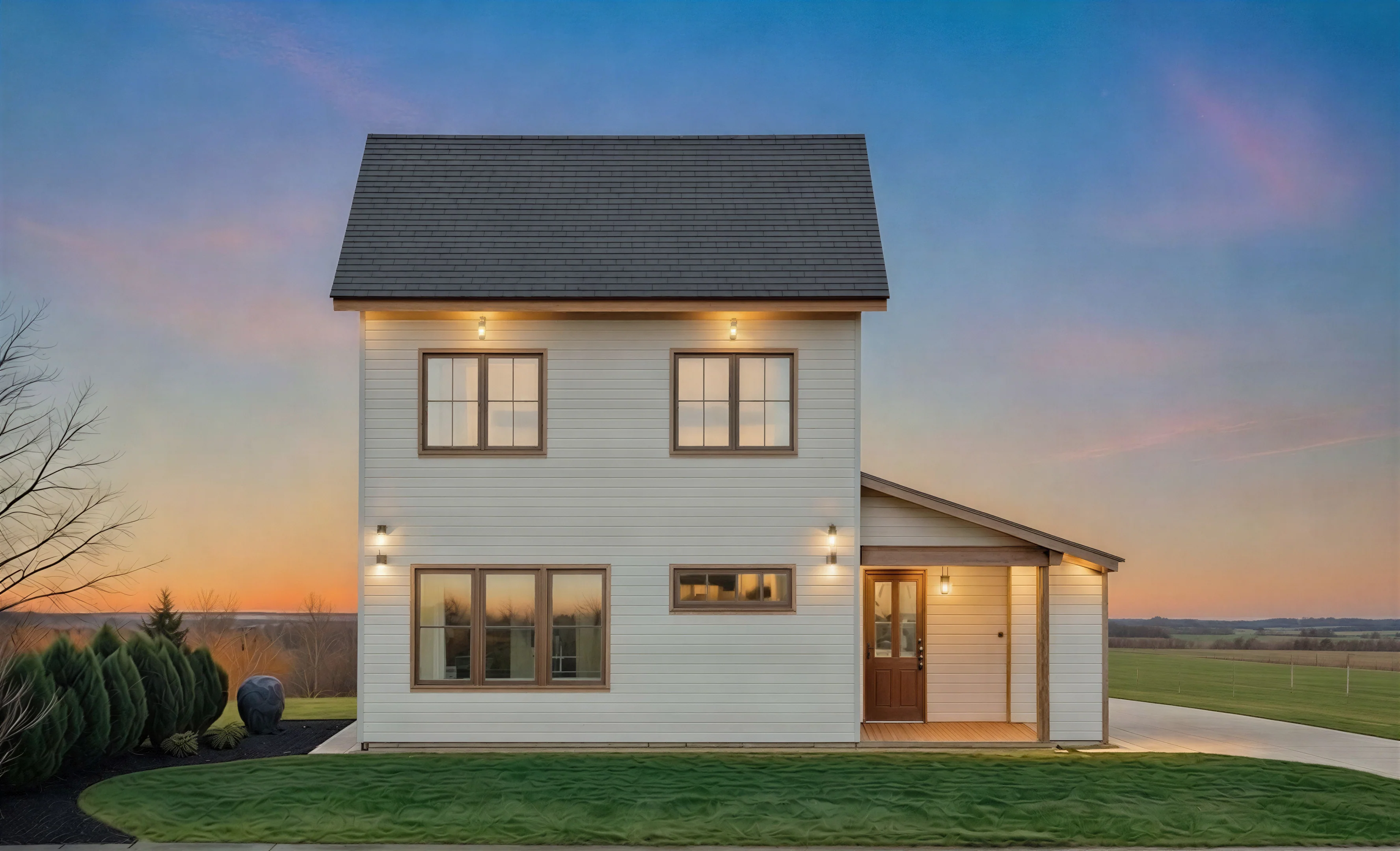

SV-30019-B Brooks Custom Home Plan

SV-30019-B Brooks Custom Home Plan



About this custom home plan:

• 2124 Heated Square Feet

• 3 Bedrooms

• 2.1 Bathrooms

• Two Story

• Open concept

• Office

• Foyer

• Mudroom

• Front porch

• Patio

• 269 Sq Ft Garage



• A well-planned 2,124 sq ft layout offering comfortable, modern living with three bedrooms all located upstairs, and two full bathrooms on the second floor—including a spacious master bath—plus a convenient half bath on the main level.

• Dedicated main-floor office that’s perfect for working from home, studying, or managing daily tasks.

• Welcoming foyer that makes a polished first impression the moment you walk in.

• Charming front porch that boosts curb appeal and provides a cozy outdoor place to relax.

• Comfortable backyard patio ideal for grilling, lounging, or enjoying fresh air with family and friends.

• Convenient 269 sq ft garage offering secure parking and extra storage for your everyday essentials.



What's included in SV-30019-B:

Cover Page

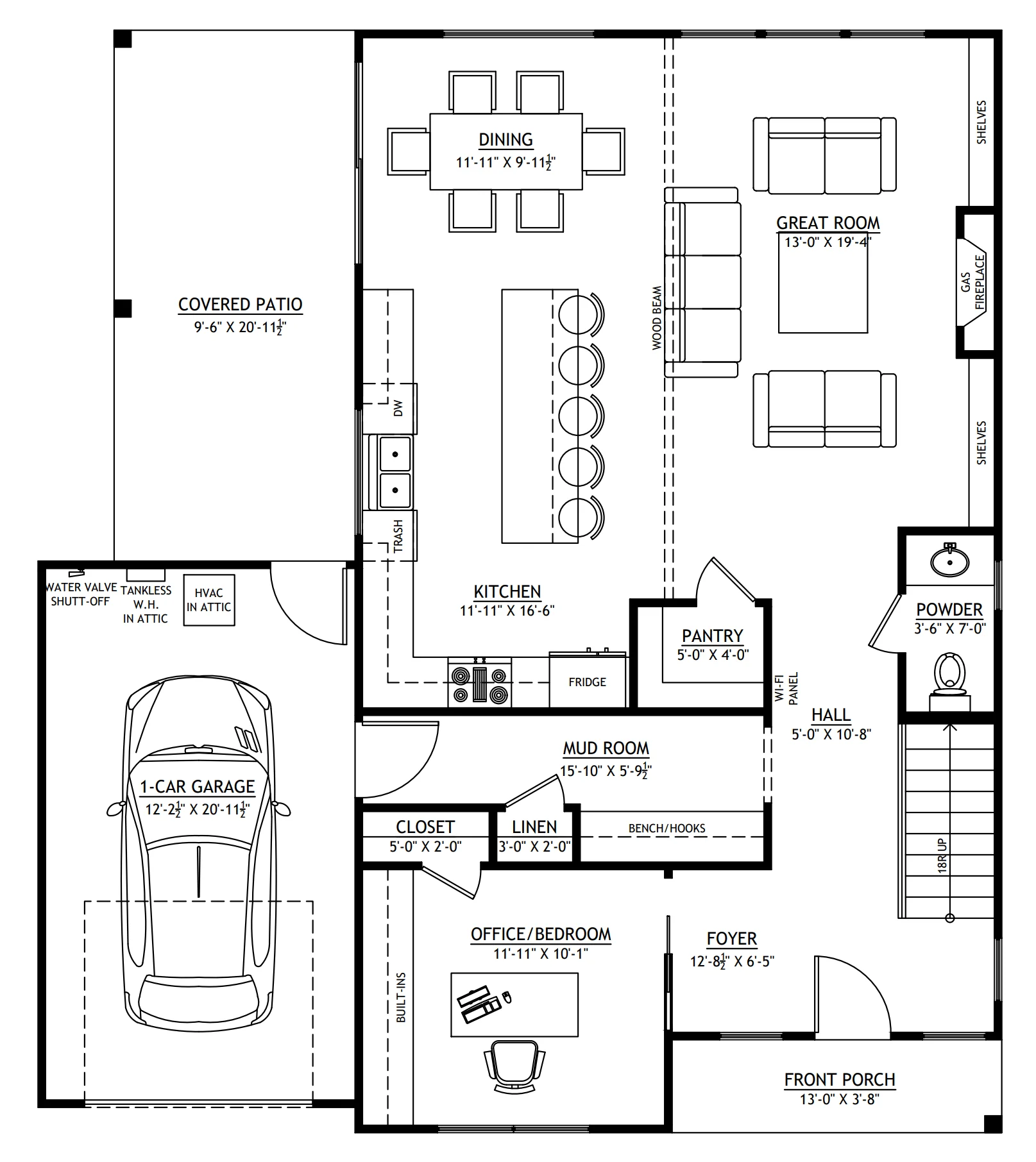

First Floor Plan

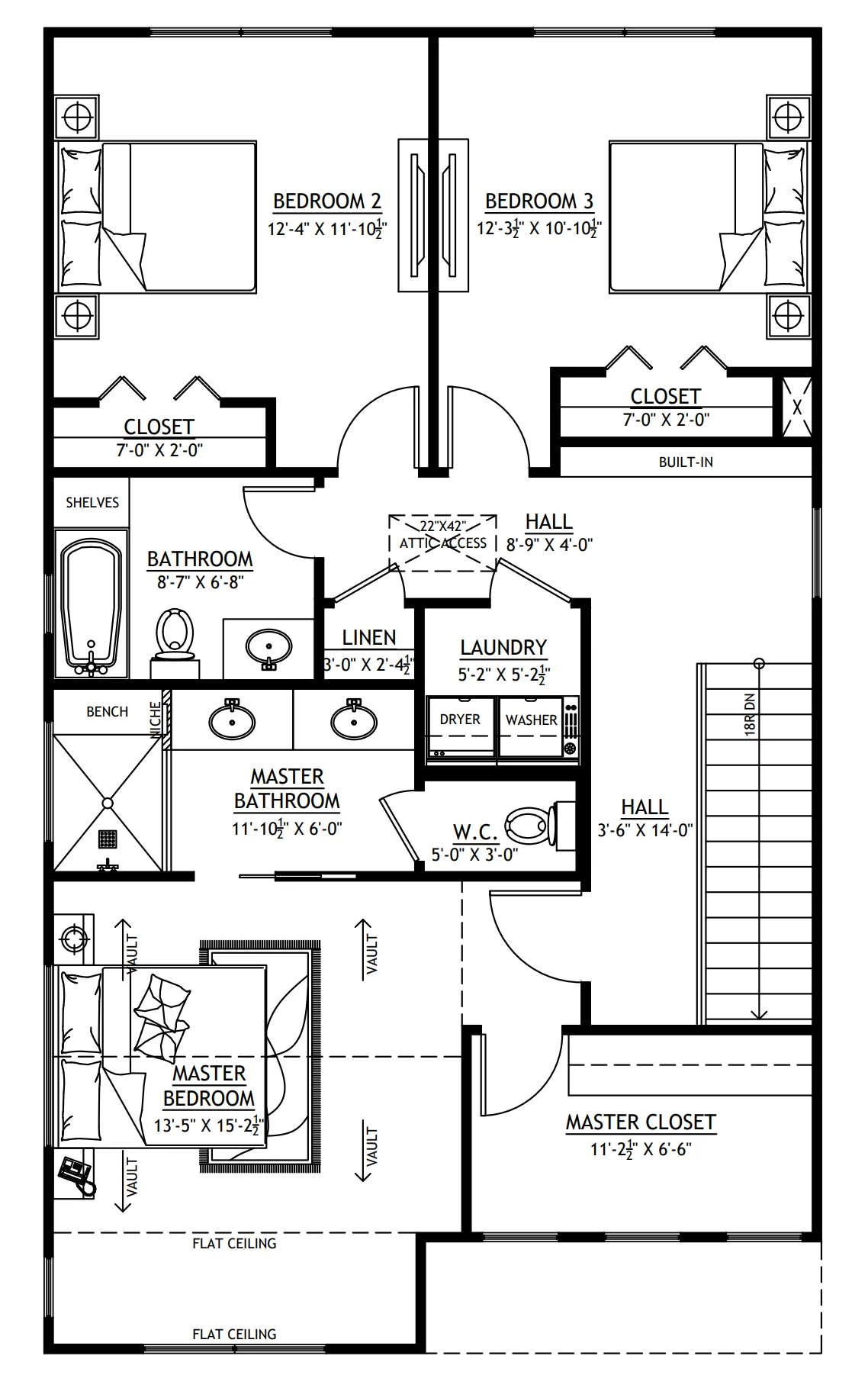

Second Floor Plan
Roof Plan

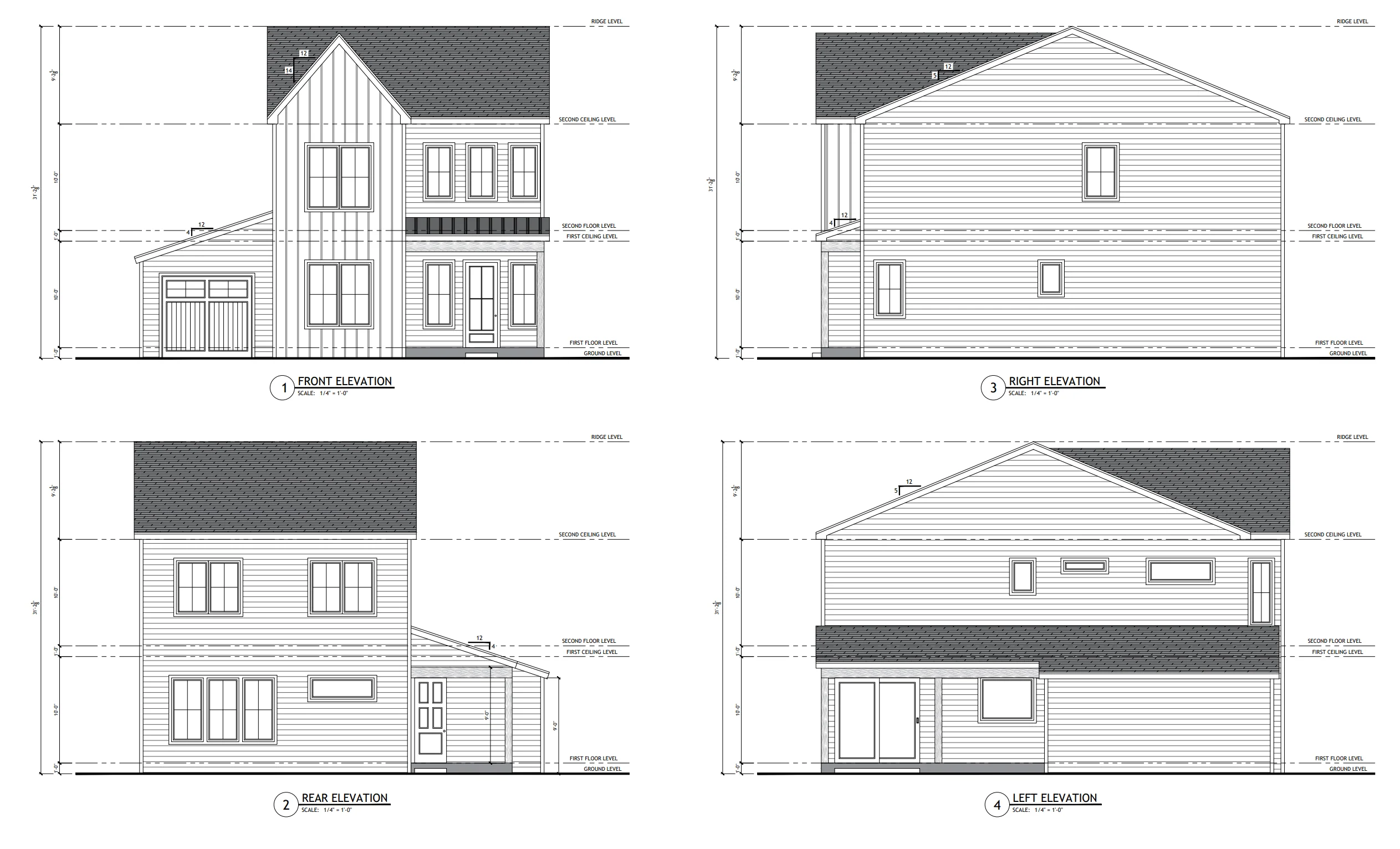

Exterior Elevations
Interior Elevations
First Floor Electrical Plan
Second Floor Electrical Plan
First Floor Plumbing Plan
Second Floor Plumbing Plan
First Floor HVAC Plan
Second Floor HVAC Plan
Roof Framing Plan
First Floor Wall Framing Plan
Second Floor Wall Framing Plan
First Floor Ceiling Joist Plan
Second Floor Ceiling Joist Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
Section A-A And Section B-B
Typical Framing Details-1
Typical Framing Details-2
Typical Framing Details-3



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
