SV-30019-A Aaron Custom Home Plan

SV-30019-A Aaron Custom Home Plan



About this custom home plan:

• 1854 Heated Square Feet

• 3 Bedrooms

• 2.1 Bathrooms

• Two Story

• Open concept

• Office

• Foyer

• Front porch

• Mudroom

• 269 Sq Ft Garage



• A well-planned 1,854 sq ft layout that delivers comfort, style, and efficient living across two thoughtfully designed levels.

• Three private upstairs bedrooms create a quiet retreat away from the main living spaces.

• Two full bathrooms conveniently located upstairs plus a handy half bath on the main floor for guests and everyday use.

• A convenient main-floor office—perfect for working from home or managing daily tasks.

• Welcoming foyer that makes a great first impression and sets the tone for the home’s style.

• Charming front porch that adds curb appeal and provides a cozy outdoor spot to relax.

• A 269 sq ft, one-car garage offering practical parking space and added storage for daily essentials.



What's included in SV-30019-A:

Cover Page

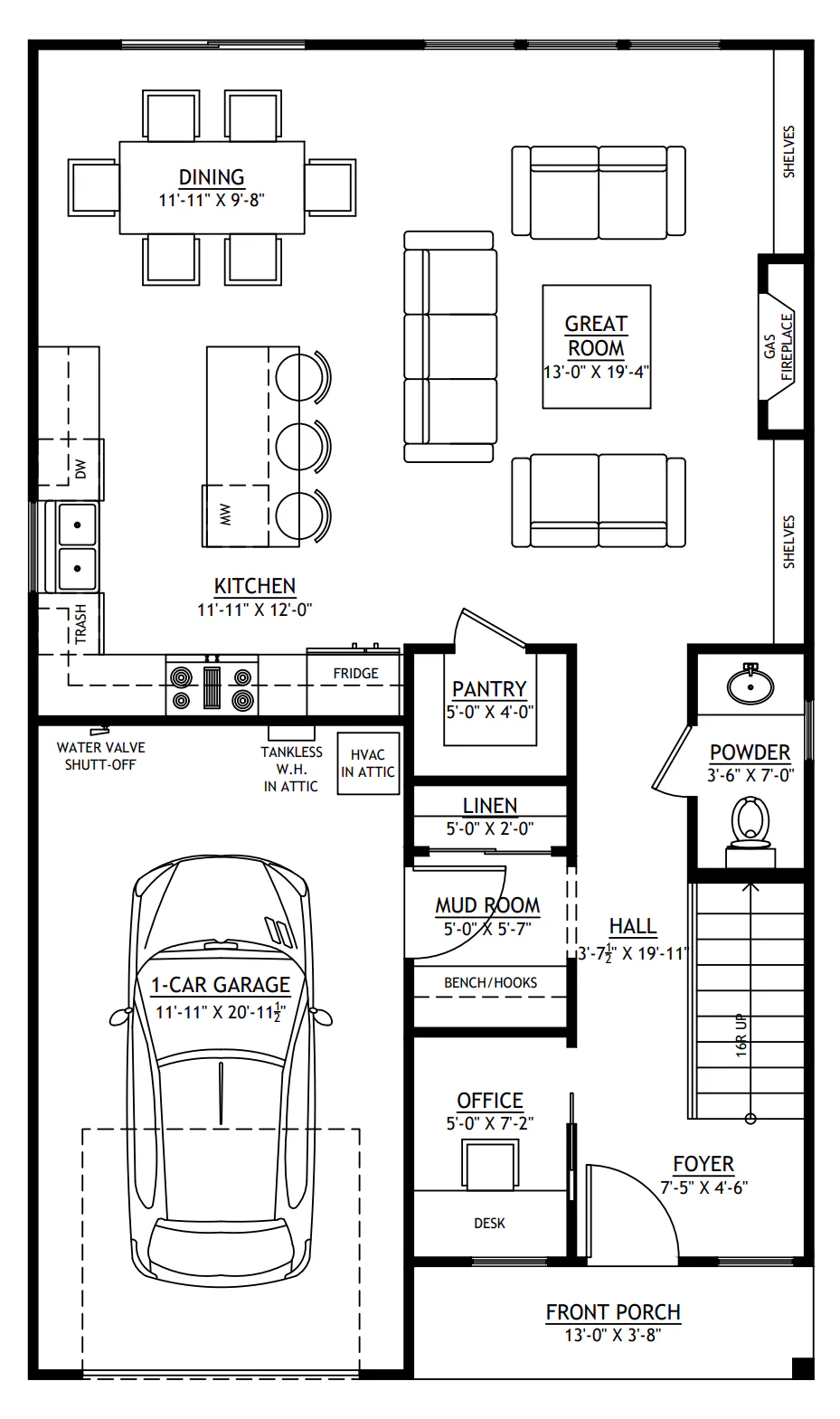

First Floor Plan

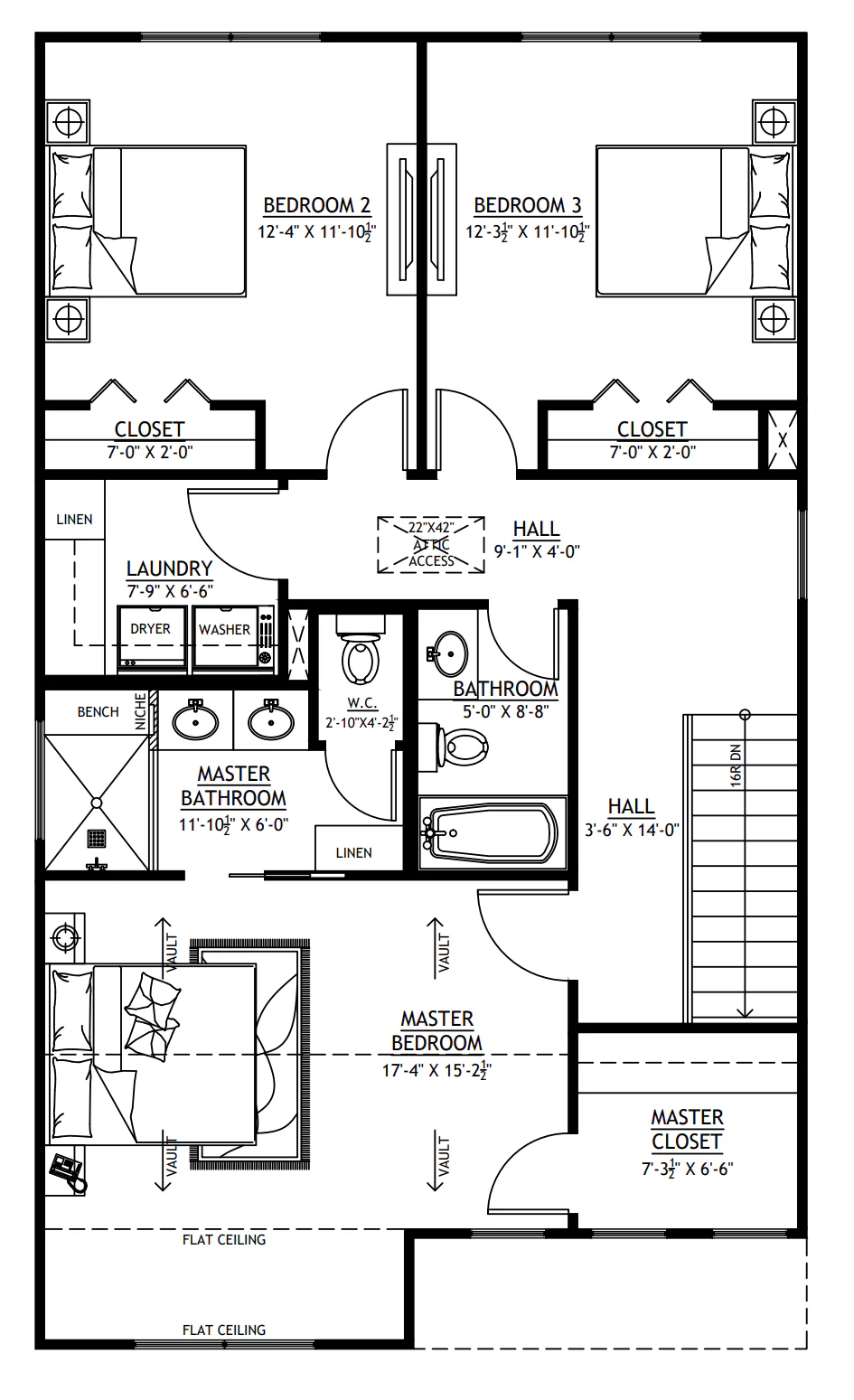

Second Floor Plan
Roof Plan
Front And Rear Elevation

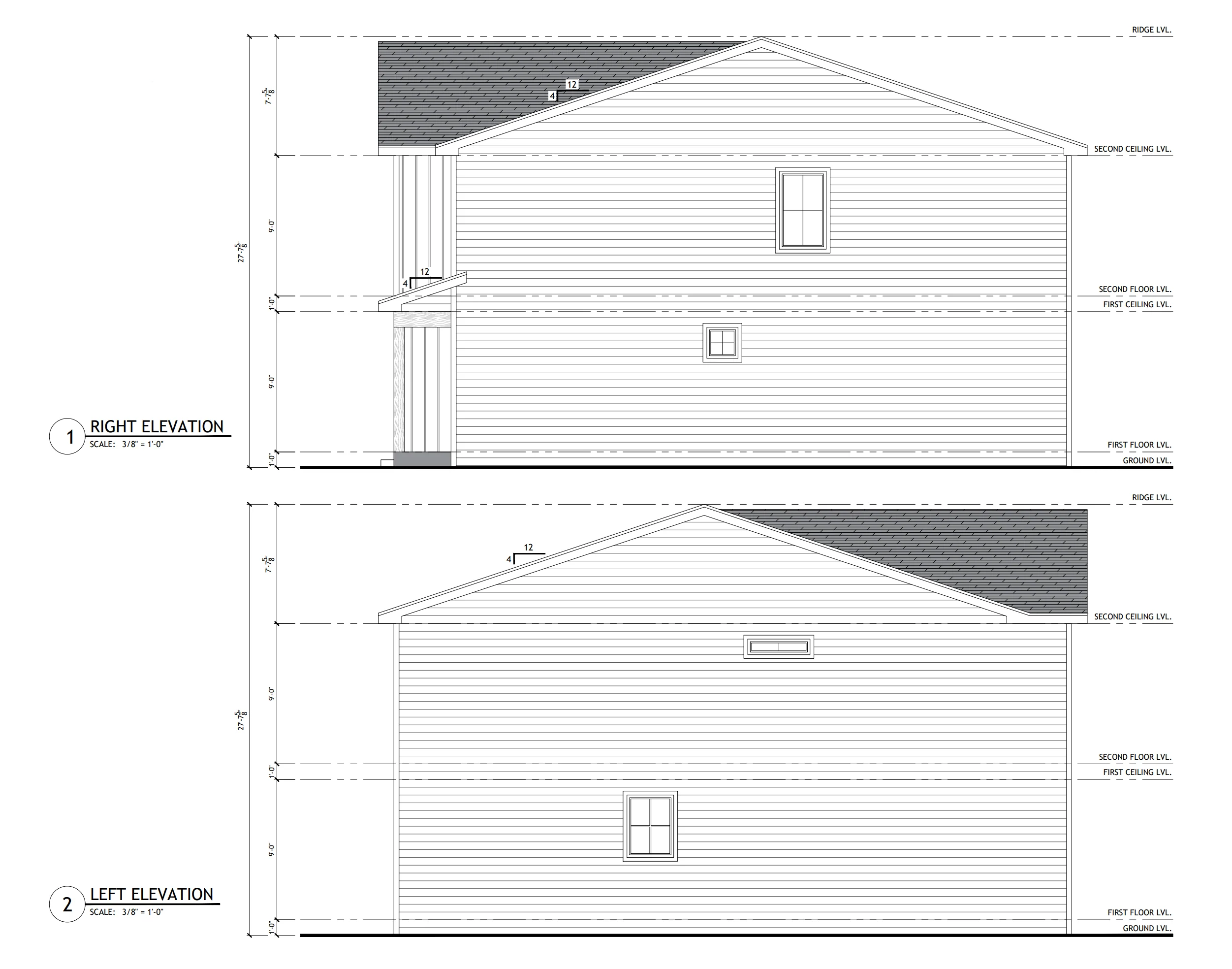

Right And Left Elevation
Interior Elevations
First Floor Electrical Plan
Second Floor Electrical Plan
First Floor Plumbing Plan
Second Floor Plumbing Plan
First Floor HVAC Plan
Second Floor HVAC Plan
Roof Framing Plan
First Floor Wall Framing Plan
Second Floor Wall Framing Plan
First Floor Ceiling Joist Plan
Second Floor Ceiling Joist Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
Section A-A And Section B-B
Typical Framing Details-1
Typical Framing Details-2
Typical Framing Details-3



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
